2014-2020 Impala ABS Module: Adaptive Cruise Control, Programming, and Replacement Guide
This guide covers the critical differences in ABS modules for the 10th generation Impala, plus essential programming information and common failure points.
- Compatibility is critical: You must get the correct module for your Impala based on whether it has Adaptive Cruise Control (option code KSG).
- Programming is mandatory: A replacement ABS module, new or used, will not work until it is programmed to your vehicle's VIN by a dealer or a qualified independent shop.
- Check sensors first: ABS and StabiliTrak lights are often caused by a much cheaper and simpler failure of a wheel speed sensor or its wiring, not the module itself.
- Driving is risky: While the car will still brake without a functioning ABS module, you will not have anti-lock, traction control, or stability control, which is a major safety compromise.
Critical Compatibility Warnings for 2014-2020 Impala
Before purchasing a replacement ABS control module for a 2014-2020 Chevrolet Impala, you must verify two key pieces of information. Ordering the wrong part will result in it not functioning correctly.
Warning: For model years 2014-2016, ensure you are buying for the 10th generation 'New Style' Impala, not the 'Impala Limited'. The Impala Limited was the older 9th generation body style sold to fleet customers and uses completely different parts. The 10th generation Impala has a '1' as the 4th digit of its VIN.
Adaptive Cruise Control (Option Code KSG) vs. Standard Cruise
This is the most important distinction. The ABS control module is different for vehicles equipped with Adaptive Cruise Control (ACC) versus those with standard cruise control. ACC uses radar to automatically adjust your car's speed to maintain a set distance from the vehicle ahead. The ABS module is integral to this system for automatic braking.

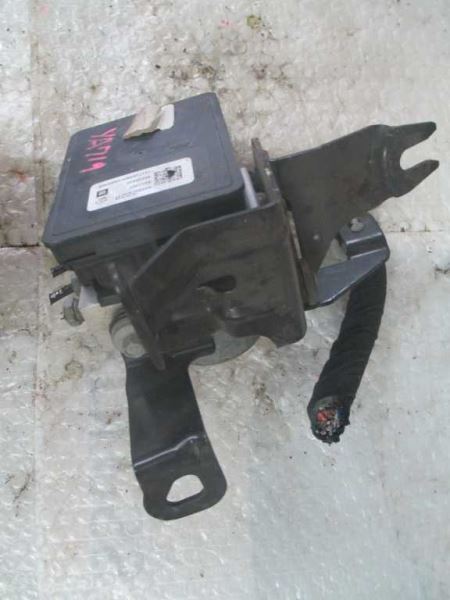

- With Adaptive Cruise Control (KSG): You MUST use a module specifically designed for this feature.
- Without Adaptive Cruise Control: You must use the standard module.
The two types are not interchangeable. Installing the wrong one will cause system malfunctions and warning lights. Always match the part number from your original module or verify compatibility by your vehicle's VIN and options.
Symptoms of a Failing ABS Control Module
While ABS-related warning lights are often caused by faulty wheel speed sensors or their wiring, a bad module can cause a distinct set of problems.
- ABS Warning Light: The most common symptom is a constantly illuminated ABS light on your dashboard.
- Traction Control / StabiliTrak Lights: Lights indicating "Service Traction Control" or "Service StabiliTrak" will often appear alongside the ABS light, as these systems are all managed by the EBCM.
- Unusual Brake Pedal Behavior: The brake pedal may feel spongy, or you might notice abnormal pulsing or activation of the ABS at low speeds when it's not needed.
- Cruise Control Disabled: The cruise control system may become inoperable.
- OBD-II Trouble Codes: A scan tool may reveal codes related to the module itself or communication errors. 🎬 See this low-tech diagnostic walkthrough for troubleshooting ABS module codes. Common codes include C0550 (Internal Fault Code), U0121 (Lost Communication With ABS Control Module), and codes for multiple wheel speed sensors at once (e.g., C0035, C0040), which can point to a module failure rather than three or four simultaneous sensor failures.
Pro Tip: Before condemning the ABS module, always inspect the wheel speed sensor wiring harnesses first. 🎬 Watch: How to diagnose ABS and Stabilitrak lights via speed sensors. A common issue on GM vehicles is for the wires running to the front wheel speed sensors to break internally or chafe, causing intermittent ABS and traction control lights, especially while turning. Also, check the magnetic encoder ring on the back of the wheel bearing for damage or debris, as this is what the sensor reads.
Known Issues, TSBs, and Recalls
While there are no widespread recalls specifically for the ABS control module on the 2014-2020 Impala, there are related service bulletins and recalls for the braking system.
- NHTSA Recall 14V541000: Some 2014 Impala models were recalled because the electronic parking brake arm might not fully retract, causing the rear brake pads to drag. This could lead to excessive heat and, in rare cases, a fire risk. The fix involved reprogramming the electronic parking brake control module.
- NHTSA Investigation PE14013: An investigation was opened for the 2014 Impala concerning inappropriate activation of the emergency braking system on vehicles with the Forward Collision Avoidance System, which is tied to the ABS module.
- GM TSB PIC-5992-A: This technical service bulletin provides diagnostic steps for technicians when ABS lights are on with codes C0035 or C0040. It points towards inspecting the wheel speed sensor harness for damage, which is a common point of failure.
Programming and Calibration: A Professional Is Required
Warning: A new or used replacement ABS control module MUST be programmed to your vehicle's Vehicle Identification Number (VIN) and specific options. This is not a plug-and-play part. Failure to program the module will result in it not working, and the ABS and StabiliTrak warning lights will remain on.
This programming procedure requires special tools and software:
- GM Service Programming System (SPS): This is GM's proprietary software used to download the correct calibration files for your specific vehicle and flash them onto the module.
- J2534 Pass-Thru Device: A special interface tool (like a GM MDI2 or equivalent) is needed to connect the computer running the SPS software to the vehicle's OBD-II port. 🎬 Learn more about using the GM Service Programming System (SPS).
While a dealership can perform this programming, many well-equipped independent repair shops that specialize in diagnostics can also do it. Some online services also offer mail-in programming or repair of your original module, which can be a cost-effective option that avoids the need for reprogramming.
Buying a Used ABS Control Module
Purchasing a used OEM ABS module is a great way to save money, but careful selection is key.
- Verify Compatibility: This is the most critical step. Double-check that the module is from a 10th generation Impala (not an Impala Limited) and, most importantly, that it matches your vehicle's Adaptive Cruise Control (ACC) status. The safest bet is to match the OEM part number directly from your old unit.

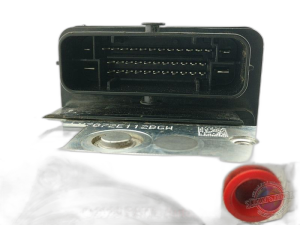

- Physical Inspection: When you receive the part, inspect the aluminum housing for any cracks or heavy corrosion. Check the electrical connector pins to ensure they are straight and free of any green or white corrosion. Inspect the brake line ports for any cross-threading or damage.
- Source from a Reputable Seller: Buy from a seller that offers a warranty and a clear return policy. This protects you in case the part is defective.
- Plan for Programming: Remember that even a perfect used part will not work until it is professionally programmed to your car. Factor the cost of programming into your total repair budget. Claims of "pre-programmed" modules are often misleading, as true programming requires the module to be installed in the target vehicle.
Cost Breakdown
The cost to replace an ABS module can vary significantly based on the parts source and labor rates.
| Item | Estimated Cost |
|---|---|
| New OEM Module | $300 - $600 |
| New Aftermarket Module | $250 - $450 |
| Used OEM Module | $100 - $250 |
| Remanufactured/Repaired Original | $150 - $300 |
| Shop Labor (Installation & Brake Bleed) | $200 - $300 |
| Shop Labor (Programming) | $120 - $250 (approx. 1-1.5 hours) |
Frequently Asked Questions (FAQ)
Does a used ABS module need to be programmed for a 2015 Impala?
Yes. Any replacement ABS module, whether new or used, must be programmed to your car's specific VIN and options using GM's SPS software. Without this step, the module will not communicate with the vehicle's other computers, and your safety systems will not function.
What is Adaptive Cruise Control (ACC) and how do I know if I have it?
Adaptive Cruise Control (GM option code KSG) is an advanced feature that uses a radar sensor (usually in the front grille) to automatically maintain a set following distance from the car in front of you, braking and accelerating as needed. If your cruise control buttons have options for adjusting following distance, or if you see a car-shaped icon with distance bars in your instrument cluster when cruise is active, you likely have ACC. The definitive way to know is to check the Service Parts Identification sticker (usually in the glove box or trunk) for the code "KSG".
Can I drive my Impala with a bad ABS module?
Yes, but with significant risks. Your car will still have its standard hydraulic brakes, but the anti-lock (ABS), traction control (TCS), and stability control (StabiliTrak) features will be disabled. This means your wheels can lock up during a panic stop, increasing stopping distances and causing a loss of steering control, especially on wet or slippery surfaces.
My ABS light is on. Is it the module or a wheel speed sensor?
It is far more common for a single wheel speed sensor or its wiring to fail than the entire module. If a scan tool shows a fault for only one specific wheel (e.g., C0040 for the right front), the problem is likely the sensor or wiring for that wheel. If the scan tool shows an internal module fault code (like C0550) or codes for multiple sensors simultaneously, the module itself is a more likely culprit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84092226 84092228 84092230 84092231 84314310 84314313 84605923 22760041 22961487 23183129 23208063 23208065 23208066 23227331

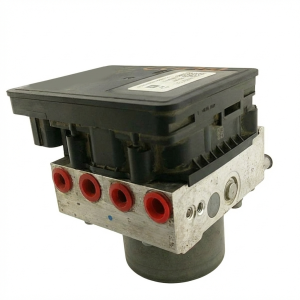

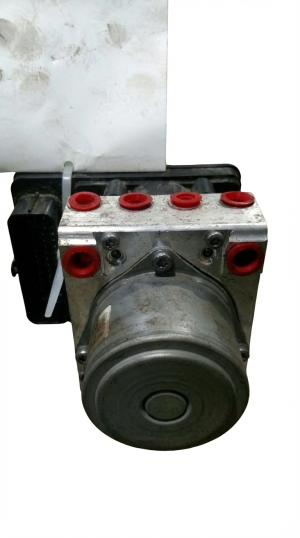

Location: Under the hood, on the passenger side, below the coolant reservoir. The assembly consists of the electronic control module (EBCM) and the hydraulic pump/valve body (BPMV).
